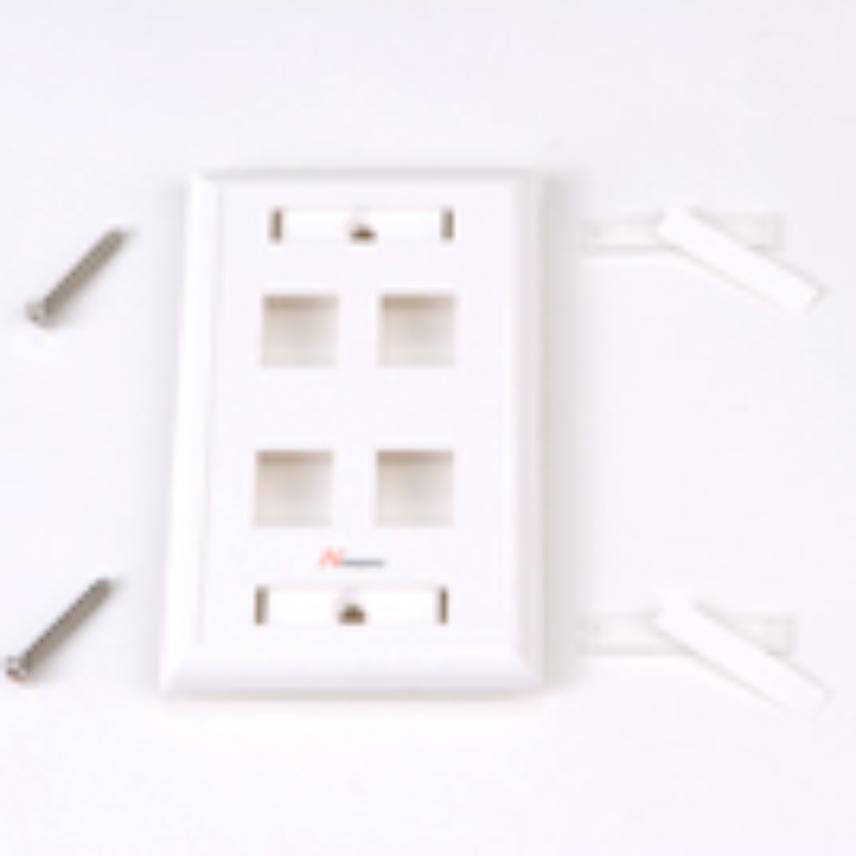

US style Wallplate 4 Keystone Single Gang White

Application

This American style wallplate is designed to accommodate four Essential keystone connectors. It has a single gang format according to standard US dimensions.

A two port version is also available (N423.622) - please refer to the specific datasheet.

Design

The wallplate comes in white with a fine textured finish and has labelling facilities at the top and bottom.

The plastic material is UL 94V-0.

Installation

The Essential keystone connectors can be easily inserted in the wallplate with a simple one-click operation.

The wallplate is supplied with 2 screws for mounting onto a standard US wall box. The screws are located behind the labelling areas which enhances the appearance of the finished wall outlet.

The product is individually bagged and comes in boxes of 100 pcs.
