ZD box 6 Snap-In White
ZD box 6 Snap-In White
- For use as consolidation point.
- Compatible with all snap-in connectors.
- 6 numbered snap-in ports with shutters.
- Cable entry from the back.
- Cable fixing features
- Supplied with earthing screw
- Multiple mounting facilities
- Nexans ref. : N521.606
Description
Description
Designed for use as consolidation points, zone distribution boxes significantly increase the flexibility of desk locations in open office environments. They are particularly useful in offices where frequent relocation of outlets in the work area is required.
Nexans ZD boxes are easy to install on walls, under raised floors or in ceiling voids, due to their multiple mounting features.
They are compatible with all Nexans Snap-In connectors, which can be easily inserted by a simple "one-click" movement.

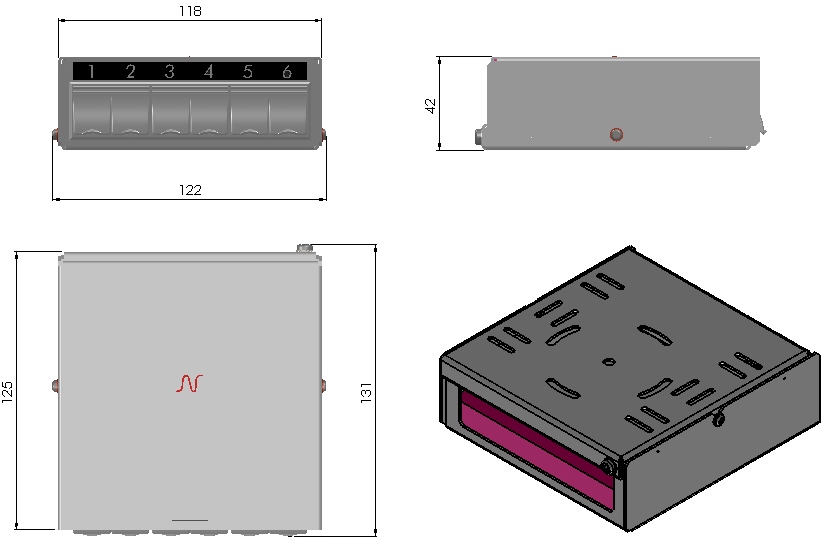

Dimensions 6 port ZD Box
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
White RAL 9002
Material
Steel
Dimensional characteristics
Dimensional characteristics
Approximate weight per piece
0.45 kg
Depth
125 mm
Height
42 mm
Width
120 mm
Usage characteristics
Usage characteristics
Field of application
Fixed installations
Number of ports
6
Packaging
-
