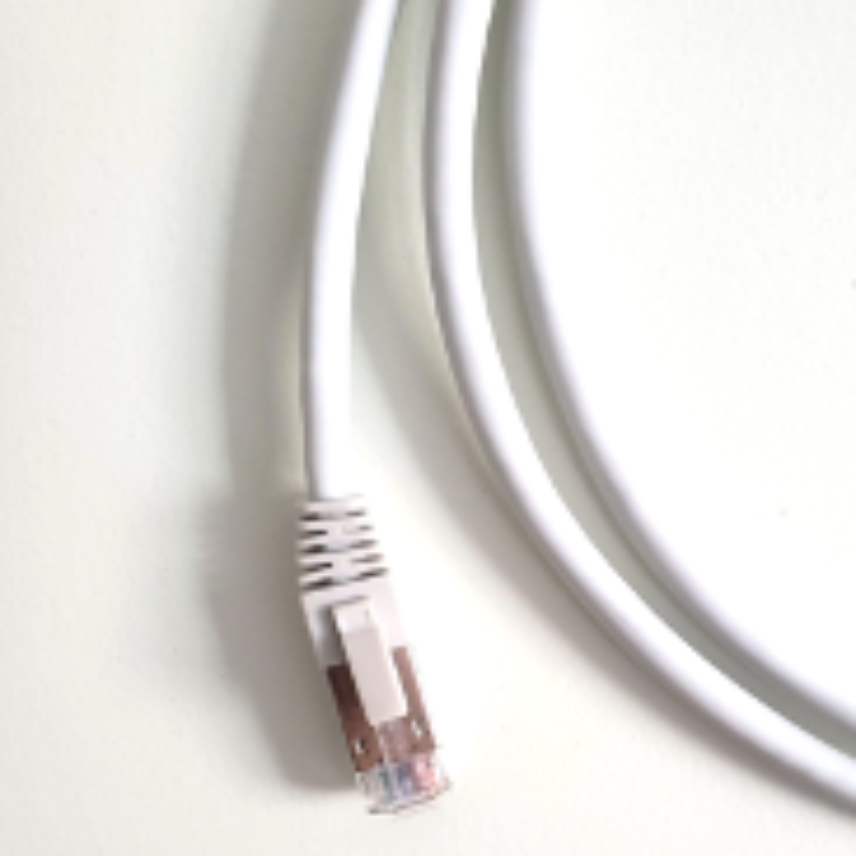

Patch Cords CAT6A

The CAT6A Patch Cord line is the 500MHz bandwidth offering for EA-class applications up to 10Gbits. It is specifically designed to support the high frequencies required for 10 Gigabit Ethernet, but is also fully compatible with low frequency applications using the RJ45 interface. CAT6A Patch Cords are shielded, sheet of global aluminum, to ensure immunity from alien crosstalk and external interference.

APPLICATION

• 10Base-T Ethernet
• 100Base-TX Fast Ethernet
• 1000Base-T Gigabit Ethernet
• 10GBase-T 10 Gigabit Ethernet IEEE 802.3
• 155 Mbit ATM
• 1.2 Gbit ATM

• Future Cat 6A and Class EA application

CONSTRUCTION

Patch Cable:

• Stranded bare copper conductor insulated by high density thermoplastic polyethylene.
• The conductors are twisted and assembled forming the core of 4 pairs.
• An aluminum foil around the core offering an Alien Crosstalk immunity.
• Nominal diameter 24AWG.

Connectors :

• High impact transparent flame retardant polycarbonate UL94-V0.
• Injected boot and with plug latch protector.
• Phosphorous bronze with 1,27μm gold and 2,54 μm nickel.
• Quantity of Cycles: 1000 RJ45.
• Standard Assembly: T568A (others upon request).

Connectorisation:

• T568A (others upon request).

INSTALLATION

Environment: Indoor - Non aggressive

APPLICABLE STANDARDS

Internationals:

• IEC 60603-7
• RoHS directive

National:

• ABNT NBR 14565

CERTIFICATION

• UL Listed
• Anatel

WARRANTY

• 02 anos
