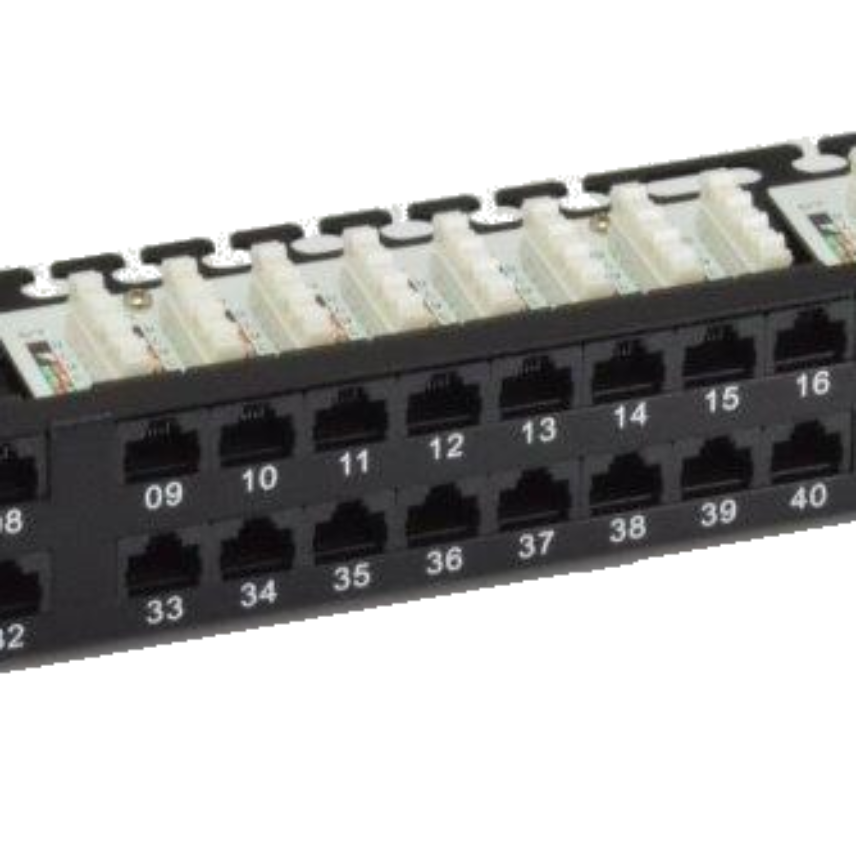

CAT5 Patch Panels 48P

The CAT5e Nexans patch panel line is the 100MHz bandwidth offering for Class D applications up to 1Gbits. The line is designed to meet the needs of structured, horizontal and secondary cabling systems in telecommunication rooms (cross-connect), with the function of securely distributing voice, data and image services.

DESIGN

• In accordace with the requirements established by Cat5e, Class D standard.
• Body made of metallic material in SAE steel with smooth front epoxy paint in black.
• 4 modules of 6 connectors in thermoplastic of high impact not propagating the flame (UL 94-V0).
• Rear metallic guide with individual fixing and for cable organization.
• Standard 110 IDC connection terminals, for 22 to 24 AWG conductors.
• Material of the contact rods produced in phosphor bronze with layers of 2.54µm of nickel and 1.27µm of gold.
• Supplied with fixing accessories (screws and washers).
• Designed for installation in 19" Rack, according to EIA-310D standard requirements.
• It meets the requirements established by ANSI/TIA 606A standard.
• Supplied in 2 options: 24 doors and 48 doors, using only one Rack unit, generating space savings for high density applications.
• In accordace with T568A or T568B crimping standards.
• Identification of the brand and category serigraphied on the front of the product

APPLICABLE STANDARDS

Internationals:

• Diretiva RoHS

• IEC 60603-7

The product complies with the RoHS Directive - restricting the use of heavy metals in product manufacturing and environmental preservation.

National:

• ABNT NBR 14565

CERTIFICATION

• UL Listed

WARRANTY

• 02 years for manufacturing default (See 25-year extended warranty program)
