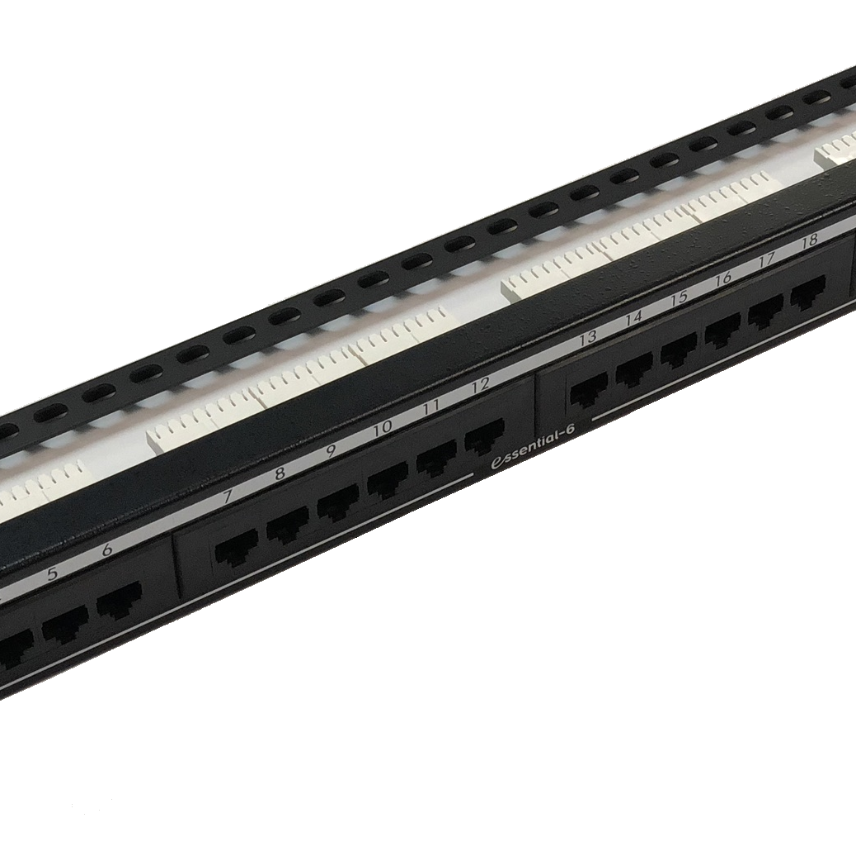

CAT5 Patch Panels 24P

Description

Description

Standards

  • Product
    ANSI/TIA-568-C.2
  • International
    ISO/IEC 11801

The CAT5e Nexans patch panel line is the 100MHz bandwidth offering for Class D applications up to 1Gbits. The line is designed to meet the needs of structured, horizontal and secondary cabling systems in telecommunication rooms (cross-connect), with the function of securely distributing voice, data and image services.

DESIGN

  • In accordace with the requirements established by Cat5e, Class D standard.
  • Body made of metallic material in SAE steel with smooth front epoxy paint in black.
  • 4 modules of 6 connectors in thermoplastic of high impact not propagating the flame (UL 94-V0).
  • Rear metallic guide with individual fixing and for cable organization.
  • Standard 110 IDC connection terminals, for 22 to 24 AWG conductors.
  • Material of the contact rods produced in phosphor bronze with layers of 2.54µm of nickel and 1.27µm of gold.
  • Supplied with fixing accessories (screws and washers).
  • Designed for installation in 19" Rack, according to EIA-310D standard requirements.
  • It meets the requirements established by ANSI/TIA 606A standard.
  • Supplied in 2 options: 24 doors and 48 doors, using only one Rack unit, generating space savings for high density applications.
  • In accordace with T568A or T568B crimping standards.
  • Identification of the brand and category serigraphied on the front of the product

APPLICABLE STANDARDS

Internationals:

  • Diretiva RoHS
  • IEC 60603-7

The product complies with the RoHS Directive - restricting the use of heavy metals in product manufacturing and environmental preservation.

National:

  • ABNT NBR 14565

CERTIFICATION

  • UL Listed

WARRANTY

  • 02 years for manufacturing default (See 25-year extended warranty program)

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Colour
Black
Connector type
RJ45 and 110/LSA+ IDC

Dimensional characteristics

Dimensional characteristics

Heightunit
1 U
Jack Wire Sizes
22 ... 24

Usage characteristics

Usage characteristics

Category
Cat. 5e
Number of ports
24
Operating temperature, range
-10 ... 60 °C
Packaging
Box
