Nexans CAT5e

Products

CAT5E U/UTP CM 4P 24AWG AZC 305

Nexans ref. N100.562330 - Country ref. 17562

  • Packaging: Pallet (19825m)
  • Outer sheath: PVC - CM
  • Colour: Blue
  • Length: 305 m
  • Installation type: Indoor



CAT5E U/UTP CM 4P 24AWG CZ 305

Nexans ref. N100.562730 - Country ref. 17582

  • Packaging: Pallet (19825m)
  • Outer sheath: PVC - CM
  • Colour: Grey
  • Length: 305 m
  • Installation type: Indoor



CAT5E U/UTP CMX 4P 24AWG AZC 305

Nexans ref. N100.561330 - Country ref. 17490

  • Packaging: Pallet (19825m)
  • Outer sheath: PVC - CMX
  • Colour: Blue
  • Length: 305 m
  • Installation type: Indoor



CAT5E U/UTP CMX 4P 24AWG BC 305

Nexans ref. N100.561130 - Country ref. 17493

  • Packaging: Pallet (19825m)
  • Outer sheath: PVC - CMX
  • Colour: White
  • Length: 305 m
  • Installation type: Indoor



CAT5E U/UTP CMX 4P 24AWG CZ 305

Nexans ref. N100.561730 - Country ref. 17492

  • Packaging: Pallet (19825m)
  • Outer sheath: PVC - CMX
  • Colour: Grey
  • Length: 305 m
  • Installation type: Indoor



CAT5E U/UTP CMX 4P 24AWG PT 305 I/O

Nexans ref. N100.561231 - Country ref. 17520

  • Packaging: Pallet (19825m)
  • Outer sheath: PVC - CMX
  • Colour: Black
  • Length: 305 m
  • Installation type: Indoor/Outdoor



CAT5E U/UTP LSZH 4P 24AWG AZC 305

Nexans ref. N100.564330 - Country ref. 17549

  • Packaging: Pallet (19825m)
  • Outer sheath: LSZH
  • Colour: Blue
  • Length: 305 m
  • Installation type: Indoor



CAT5E U/UTP LSZH 4P 24AWG BC 305

Nexans ref. N100.564130 - Country ref. 17584

  • Packaging: Pallet (19825m)
  • Outer sheath: LSZH
  • Colour: White
  • Length: 305 m
  • Installation type: Indoor



CAT5e U/UTP CMX 4P 24AWG AZC 100

Nexans ref. N100.561300 - Country ref. 17654

  • Packaging: Pallet (14000m)
  • Outer sheath: PVC - CMX
  • Colour: Blue
  • Length: 100 m
  • Installation type: Indoor



CAT5e U/UTP CMX 4P 24AWG BC 100

Nexans ref. N100.561100 - Country ref. 17658

  • Packaging: Pallet (14000m)
  • Outer sheath: PVC - CMX
  • Colour: White
  • Length: 100 m
  • Installation type: Indoor



CAT5e U/UTP CMX 4P 24AWG PT 100 I/O

Nexans ref. N100.561201 - Country ref. 17676

  • Packaging: Pallet (14000m)
  • Outer sheath: PVC - CMX
  • Colour: Black
  • Length: 100 m
  • Installation type: Indoor/Outdoor



Description

Description

Standards

  • Product
    ANSI/TIA 568.2-D; IEC 61156-5
  • International
    ISO/IEC 11801

Application

The Nexans CAT5e cable line is the 100MHz bandwidth offer for class D applications up to 1Gbits. Nexans CAT5e cables are designed for horizontal applications in structured cabling networks to connect the user outlet to the administration panel or to interconnect administration panels. Their application is limited to 100MHz bandwidth, Class D applications.



  • FAST ETHERNET 100BASE-TX
  • GIGABIT ETHERNET 1000BASE-T
  • TOKEN RING (100 Mbps)
  • ATM LAN (155 Mbps & 622 Mbps)
  • ISDN
  • POE - POWER OVER ETHERNET
  • POE+ - POWER OVER ETHERNET PLUS
  • ANALOGUE AND DIGITAL COMMUNICATION FOR VIDEO AND VOICE

Construction and installation

CONSTRUCTION

  • Category 5e U/UTP;
  • PVC: CMX | CM or LSZH;
  • 4 twisted pairs matching the colour pattern Blue / Light Blue, Orange / White, Green / Light Green, Brown / Light Brown, as for pair insulation.
  • 24 AWG;
  • Composed of bare copper conductors, insulated in high density thermoplastic polyethylene.

INSTALLATION

Environment
Indoor - non-aggressive (7 standard colors : Blue, Red, Grey, Black, White, Yellow, Green e other colours on request)
Indoor/Outdoor- non-aggressive (only the CMX black shealth)

Standards and certifications

APPLICABLE STANDARDS

International:​

  •  Directive RoHS

​The product complies with the RoHS Directive by restricting
the use of heavy metals in the manufacture of products and preservation of the environment.

National:

  •  ABNT NBR 14565
  •  ABNT NBR 14703
  •  ABNT NBR 14705


CERTIFICATIONS

  •  UL Listed
  •  ANATEL

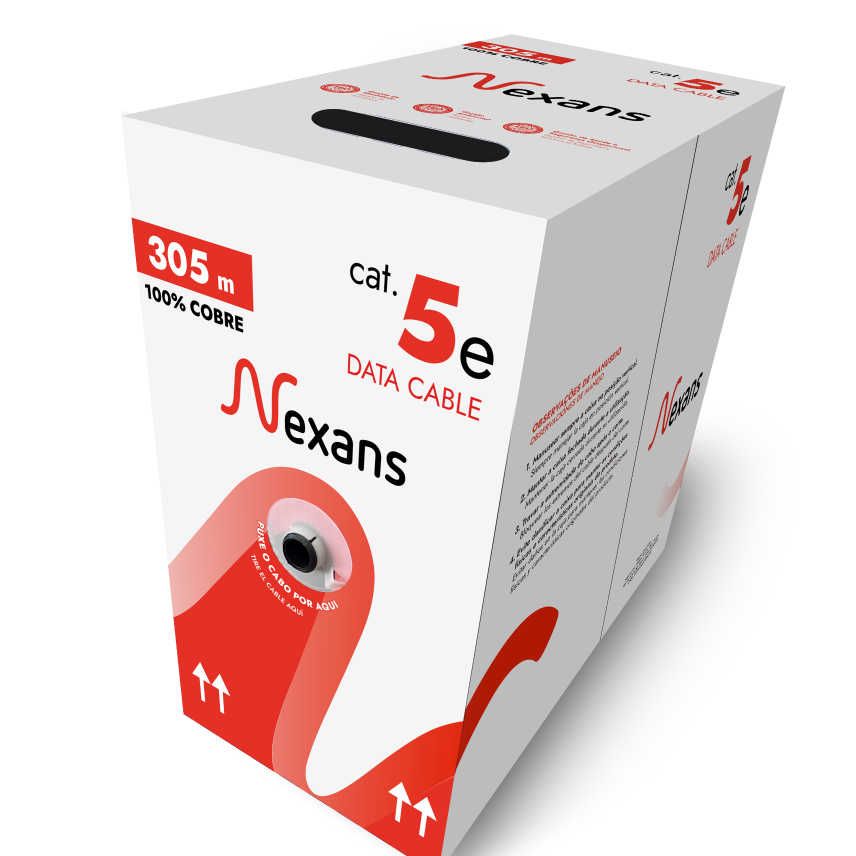

PACKAGING

  • Box of 100m (CMX)
  • Box of 305m (CMX / CM / LSZH)



WARRANTY

  • 02 years (Consult our 25 years extended warranty program).

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Type of cable
U/UTP

Resources

Resources

Documentation

Certificado Anatel pdf — 838.7 kB
xlsx — 0 B

Selling & delivery Information

CABLE LABEL

Indoor:

NEXANS CABLE  CATEGORY  5e  U/UTP  24AWG  4PAIRS  x RoHS COMPLIANT 75C ANSI/TIA 568.2-D "SEMANA/ANO" "1 a 305 m" ANATEL yyyyy-yy-yyyyy

x: CMX | CM | LSZH

yyyyy-yy-yyyyy: CMX | CM : 02082-11-05519
yyyyy-yy-yyyyy: LSZH : 02084-11-05519


Indoor/Outdoor:

NEXANS CABLE  CATEGORY  5e  U/UTP  24AWG  4PAIRS  CMX RoHS COMPLIANT 75C ANSI/TIA 568.2-D INTERNO/EXTERNO "SEMANA/ANO" "1 a 305 m" ANATEL yyyyy-yy-yyyyy

yyyyy-yy-yyyyy: 00242-12-05519
