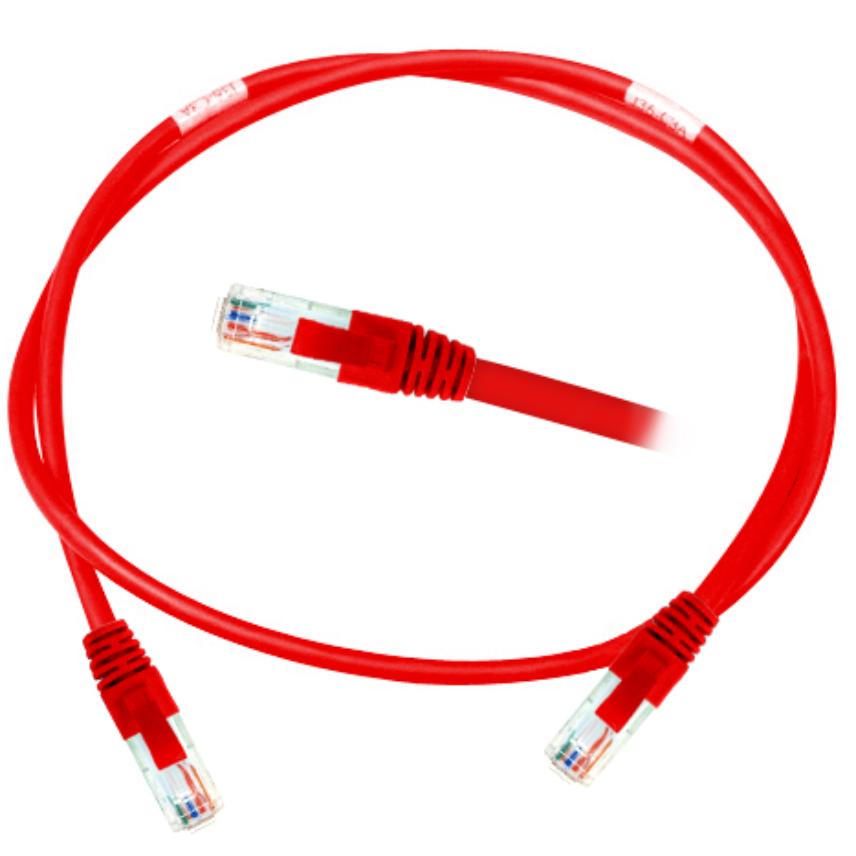

PATCH CORD CAT6 UTP CM 1,5M - VM

Os Patch Cords ESSENTIAL-6 U/UTP da Nexans foram projetados com condutores multifilar permitindo maior flexibilidade para manobras e aplicações de dados e voz, fazendo a interligação do cabeamento horizontal na área de trabalho ou na conexão cruzada. Utilizado em aplicações Power Over Ethernet (POE). Disponível também na versão LSZH (Low Smoke Zero Halogen) para instalação em locais com grande afluência de pessoas, como shoppings, hospitais, aeroportos, etc. Sua aplicação esta limitada na largura de banda de 250MHz, Classe E.

APPLICATIONS

FAST ETHERNET 100BASE-TX

GIGABIT ETHERNET 1000BASE-T

TOKEN RING (100 Mbps)

ATM LAN (155 Mbps & 622 Mbps )

ISDN

POE - POWER OVER ETHERNET

POE+ - POWER OVER ETHERNET PLUS

ANALOG AND DIGITAL COMMUNICATION FOR VIDEO AND VOICE

CONSTRUCTION

Category 6 - U/UTP:

• External flame retardant sheath, in CM and LSZH options.
• 1.5 m, 2.5 m standard size options in stock (others under consultation).
• 7 different color options for supply (Blue, Red, Gray, Black, White, Yellow and Green, others upon request).
• Individual packaging, preserving the product properties until the effective use.
• Flexible bare copper multi-wire cable assembled and tested 100% in factory, with RJ45 on both ends.

Patch Cable:

• Stranded bare copper conductor insulated by high density thermoplastic polyethylene. The conductors are twisted and assembled forming the 4 pairs core.
• A flame retardant material layer is applied over the core. RJ45 type 8-way connectors are applied on the tips.
• Nominal diameter 24AWG.

Connectors:

• High impact polycarbonate transparent flame retardant UL94-V0.
• Injected boot and with plug lock protector.
• Phosphorous bronze with 1.27µm of gold and 2.54 µm of nickel.
• Number of Cycles: 1000 RJ45.

Standard Assembly:

• T568A (others upon request).

INSTALLATION

Environment: Indoor - non aggressive

APPLICABLE STANDARDS

Internationals:

• IEC 60603-7
• RoHS Directive

The product complies with the RoHS Directive - restricting the use of heavy metals in product manufacturing and environmental preservation.

​National:

• ABNT NBR 14565

CERTIFICATION

• UL Listed
• Anatel

CABLE LABEL

NEXANS ESSENTIAL PATCH CABLE CATEGORY 6 U/UTP 24AWG 4 PARES XX RoHS COMPLIANT 75°C ANSI/TIA 568-C.2 "SEMANA/ANO" ANATEL 0245-12-5519  /  0239-12-5519

XX = CM ou LSZH

WARRANTY

• 2 years
